SkyWatcher Star Adventurer Review

Stars appear to move fairly quickly through the night sky and to freeze them when photographing from a fixed tripod, you are bound to snap short exposures at high ISO and with an ultra wide-angle lens.

But aren’t you tired of compromising with the night sky? Don’t you wish for more? If so, stop looking at faster, better, and more expensive lenses and get a star tracker.

The SkyWatcher Star Adventurer PRO is one of the most highly regarded trackers among amateur astrophotographers and won’t cost the earth.

This is our detailed SkyWatcher Star Adventurer review.

sky watcher star adventurer close up
The SkyWatcher Star Adventurer Pro.

Things To Consider Before Buying A Tracker

Astrophotography is a beautiful, rewarding, and educational hobby. But it can be frustrating and needlessly expensive if you don’t do your homework and let the “Gear Acquisition Syndrome” get you.

A star tracker like the Star Adventurer is a miniaturized equatorial mount.

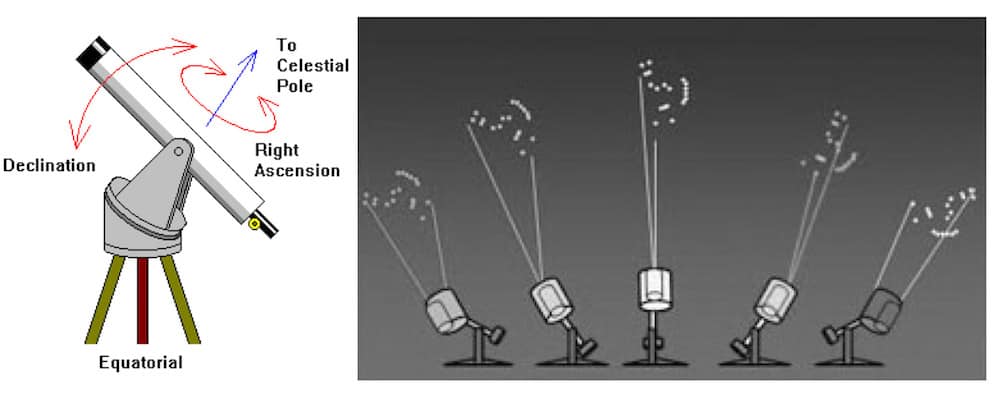

how a equatorial mount works
Once aligned to the celestial pole, an equatorial mount track the sky without suffering from field rotation: every image will show the same field of view.

While both allow to track the apparent movement of the stars, a tracker is smaller, lighter, and cheaper than a full-grown equatorial mount, making it the perfect device for beginners or astrophotographers on the move.

Once you have aligned your mount to the celestial pole, you can start taking the kind of long exposures needed to reveal the many wonders of the night sky.

extra detail you achieve from using a star adventurer skywatcher
The top image shows M42 from a stack of 8 photos from a fixed tripod. The image at the bottom shows the M42 region taken with the Star Adventurer.

Star Tracker Vs Equatorial Mount: What To Buy?

Full-grown equatorial mounts are superior to star trackers in many ways, offering better accuracy with heavier equipment and a computerized GOTO system to let you frame your target with ease.

But they are expensive, big and heavy, and require a power tank to work or, better, to be connected to the power grid.

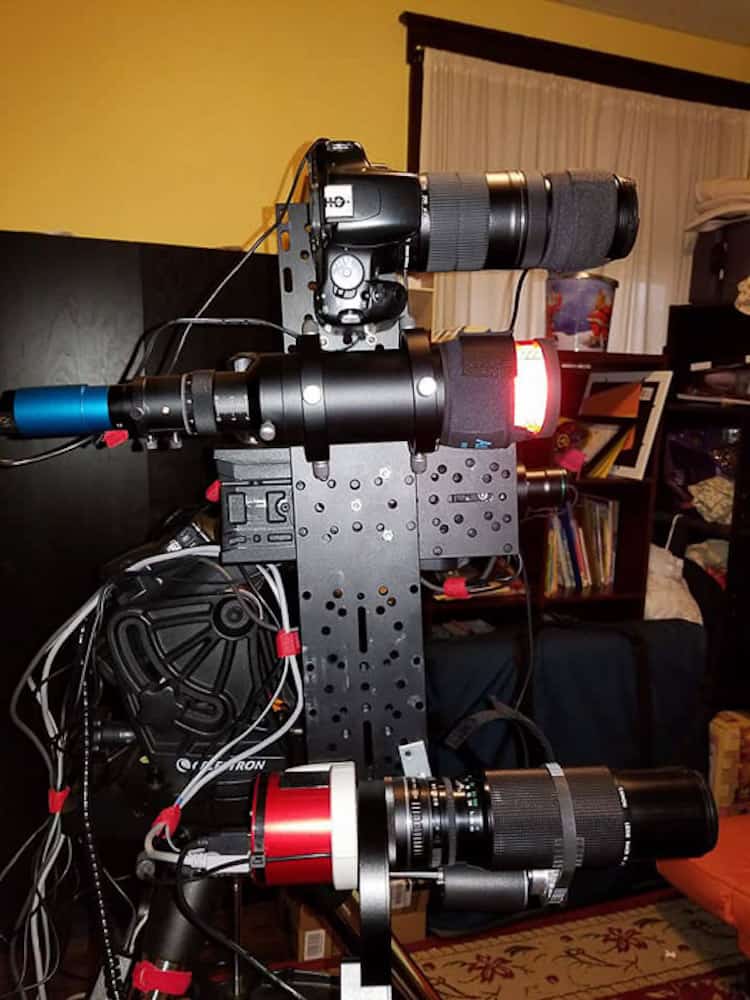

full astro setup with equatorial mount
If you’re not careful, with full-grown equatorial mounts, you can soon end up dealing with monsters like this. (Credit: Warren Landis).

Great if you can image from your garden with heavy telescopes, but I live in an apartment in Brussels, Belgium.

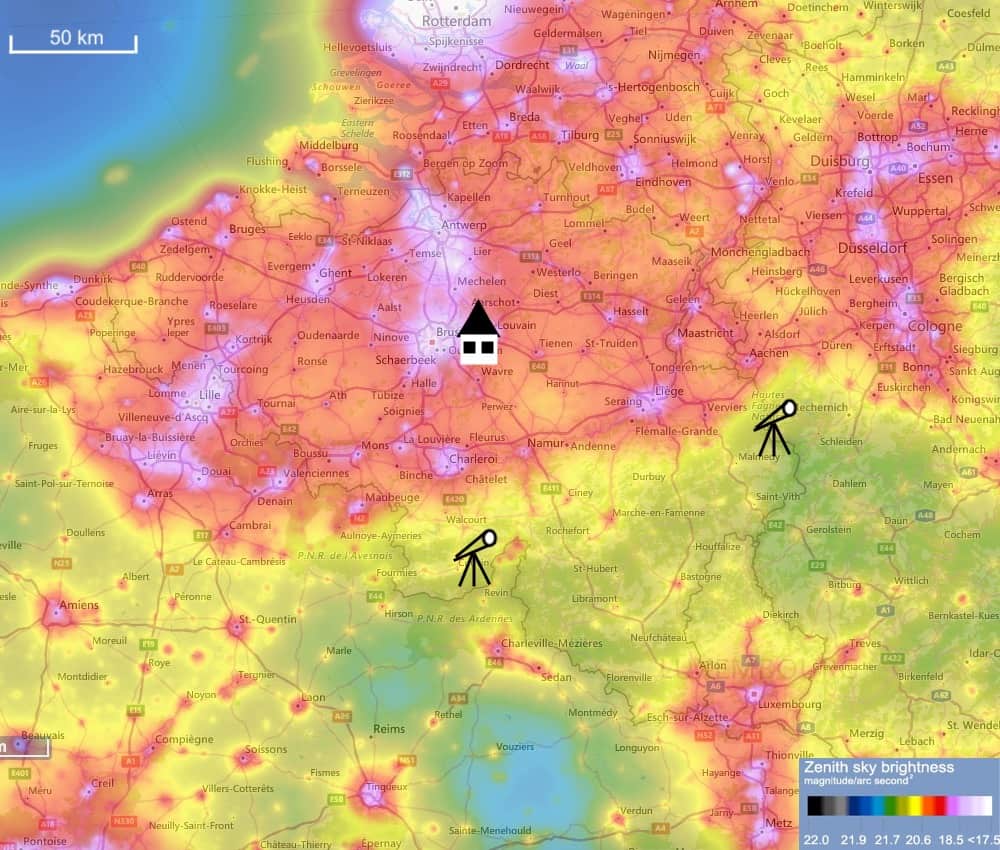

Light pollution map of Belgium
Light pollution map for Belgium: I have to travel quite far from Brussels to get to a “rural” sky.  Source: http://www.lightpollutionmap.info

To do astrophotography, I often need to move as far as 140km away from my place, park the car and walk on trails for 20 minutes before setting up for the night.

The Star Adventurer offers me the best compromise between portability and astrophotography performances.

gear needed for a astrophotography photo shoot
I photograph with two star adventurers PRO, and when I go far, I need to carry even more stuff to spend the night out. A full-grown equatorial mount will be too much for me.

With a full-grown equatorial mount, my astrophotography would be much less enjoyable. When shopping for your first mount, my advice is to look past the pure performances and consider the big picture more.

Introducing The SkyWatcher Star Adventurer: A Quick Overview

Before going into details, let’s first have a quick look at the SkyWatcher Star Adventurer technical specs and at the Pros and Cons of this tracker

Tech Specs

  • Max. load capacity: 5 kg (11 lbs)
  • Motor Type:   DC servo 144 teeth
  • Motor speeds:  Sidereal, Solar, Lunar, 0.5x, 2x, 6x, and 12x Sidereal
  • Tracking: N/S hemisphere
  • Autoguide Port: Yes
  • Timelapse: Yes
  • Battery type: 4xAA
  • Power supply: 5V
  • Polar axis scale: Yes
  • Pole finder: Yes
  • Total weight: 1,7 kg (3.63 lbs)
  • Battery types: (AA, LR6)

Black, Red, And White Versions

SkyWatcher began selling the Star Adventurer a few years ago, and we have seen at least three different versions of it. The main difference, though, was in the paint job: the first models were black, then red, and now are painted in white.

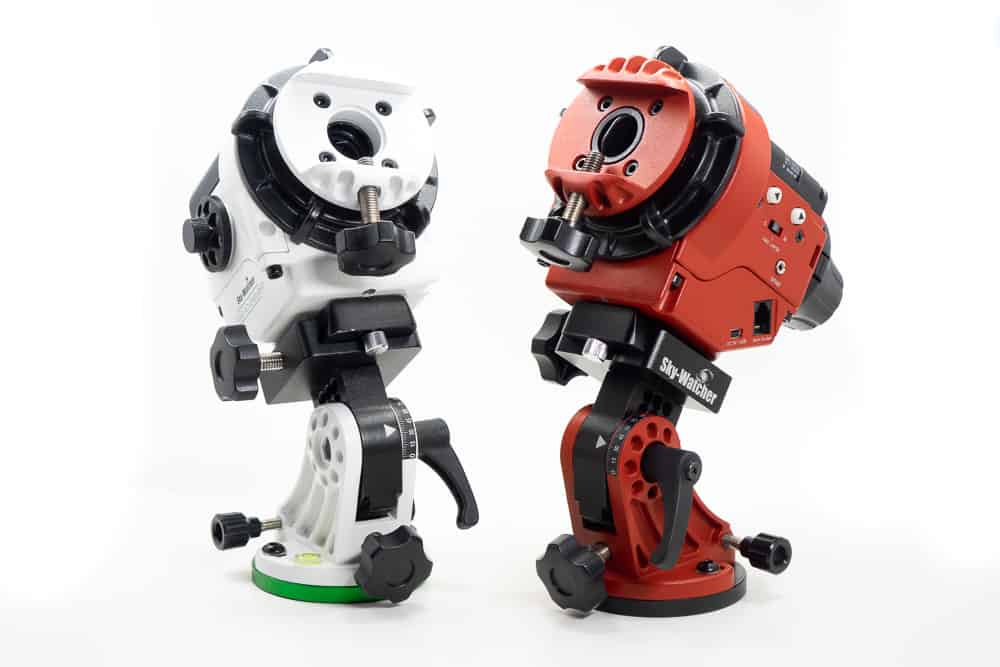

white and red versions
Different paint jobs but the same excellent performances.

I own both a red and a white model, and I don’t see any difference in their performances.

Pros

  • Affordable
  • Portable
  • Very good performances
  • Easy to use and to setup
  • Different tracking speeds available
  • Tracking works both in the Northern and Southern Hemisphere
  • Can control your camera
  • Allows creating advance time lapses
  • Can take a max payload of 5kg
  • Can be guided
  • Sits on any photographic tripod (the sturdier the better)
  • Complete range of accessories included in the PRO pack
  • Reliable even at -15ºC and with low power consumption

Cons

  • The wedge does its job, but it is a bit flimsy, making it challenging to get a very precise polar alignment
  • There is no locking mechanism to prevent turning on the mount by accident when packing it back into the bag
  • The cumbersome and flimsy polar illuminator should have been  integrated into the mount
  • Built and assembly quality is generally good but can vary from mount to mount

The Star Adventurer Detailed Review

The Tracking Unit

The Star Adventurer is a DC electric motor integrating a polar scope.

At the front of the unit, there is the mounting clamp for vixen style plates and the clutch.

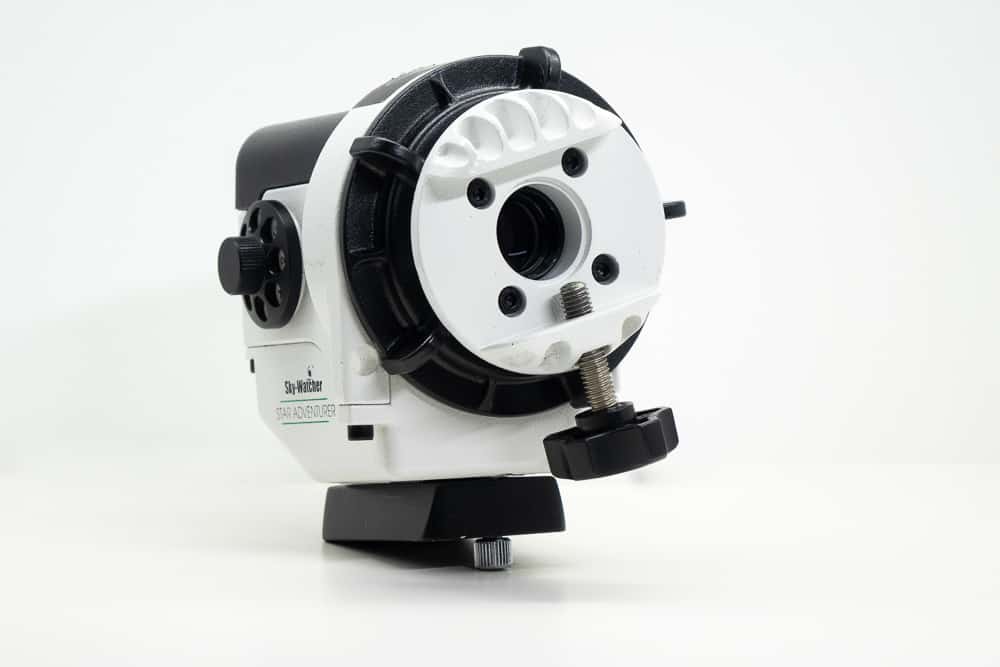

front view of the star adventurer
The front of the star adventurer, with the large black clutch ring, is easy to manipulate when wearing gloves.

With the clamp, we can mount our gear using the declination plate or the ball head adaptor included in the PRO pack.

By tightening the black ring, the clutch is engaged, and the motor can rotate the payload. By loosening the clutch, you decouple the payload from the motor, and you can frame the target and compose the shot.

The back of the unit is dominated by the polar scope and by few dials with graduated scale.

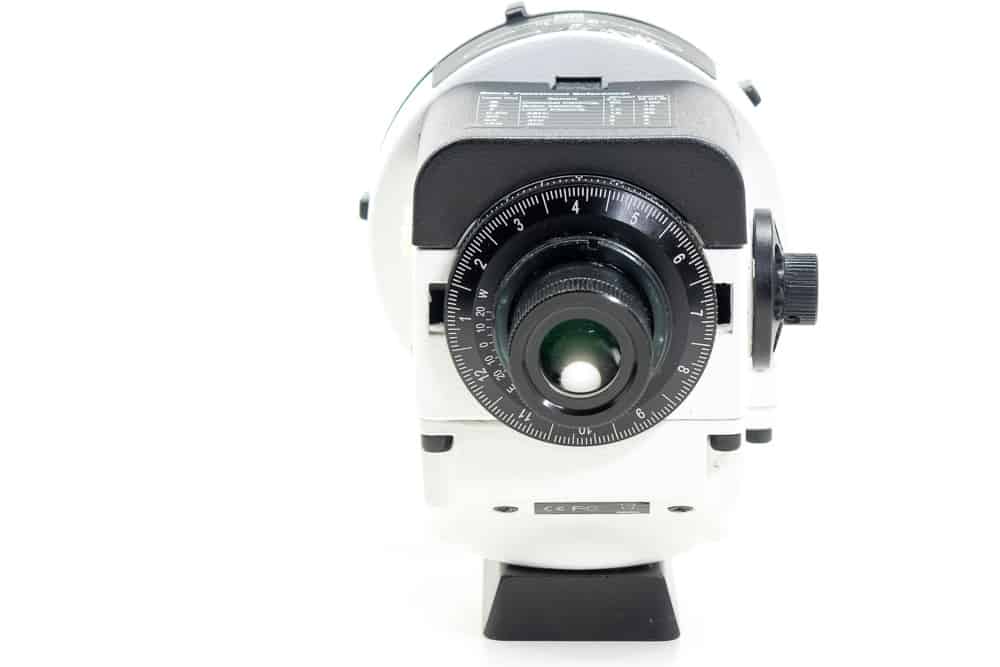

back view of the star adventurer
The back of the star adventurer with the set of dials and the polar scope.

The polar scope is where you look to perform the polar alignment. When looking through the polar scope, you will see a reticle shaped like a clock.

polar scope view
The actual reticle inside the polar scope is used to polar align the mount to the celestial pole.

If you look through the polar scope in the daytime, you’ll notice things are flipped upside down: that’s normal.

The dials have different purposes: they provide a way to polar align the mount or help with framing a target that is too faint to be visible.

On the right side of the unit, we find the tracking speed selector, which also turns on and off the motor.

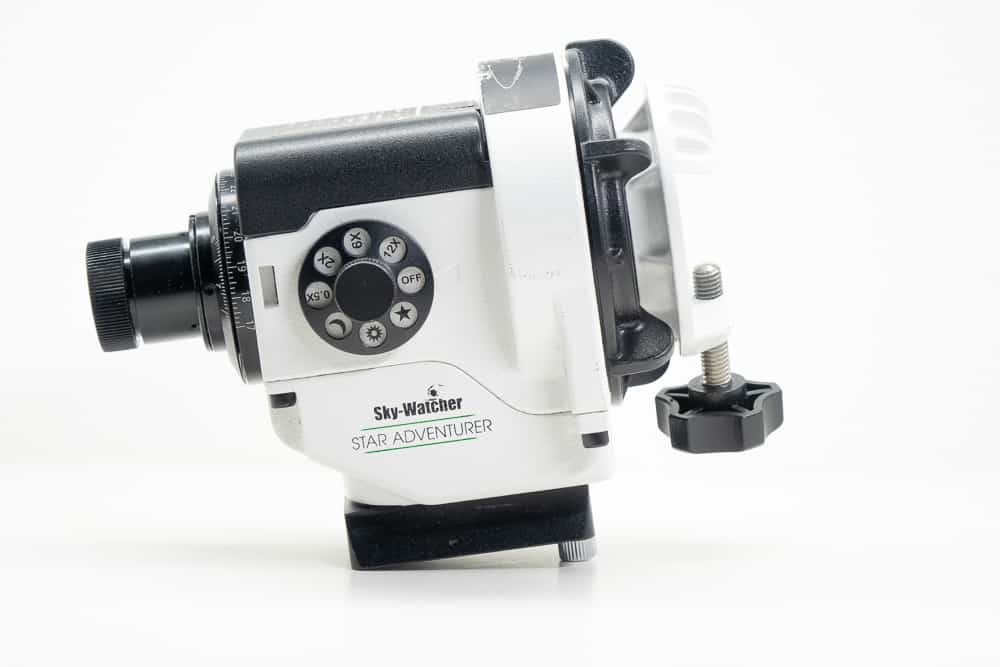

right side with the speed selector
The right side with the speed selector.

Seven different tracking speeds are available:

  • Sidereal
  • Solar
  • Lunar
  • 0.5X, 2X, 6X, and 12X of the sidereal tracking speed

If you want to photograph a starry landscape all at once, you can use the tracking mode 0.5X. The other speeds are more suitable for doing time-lapse with controlled camera motion.

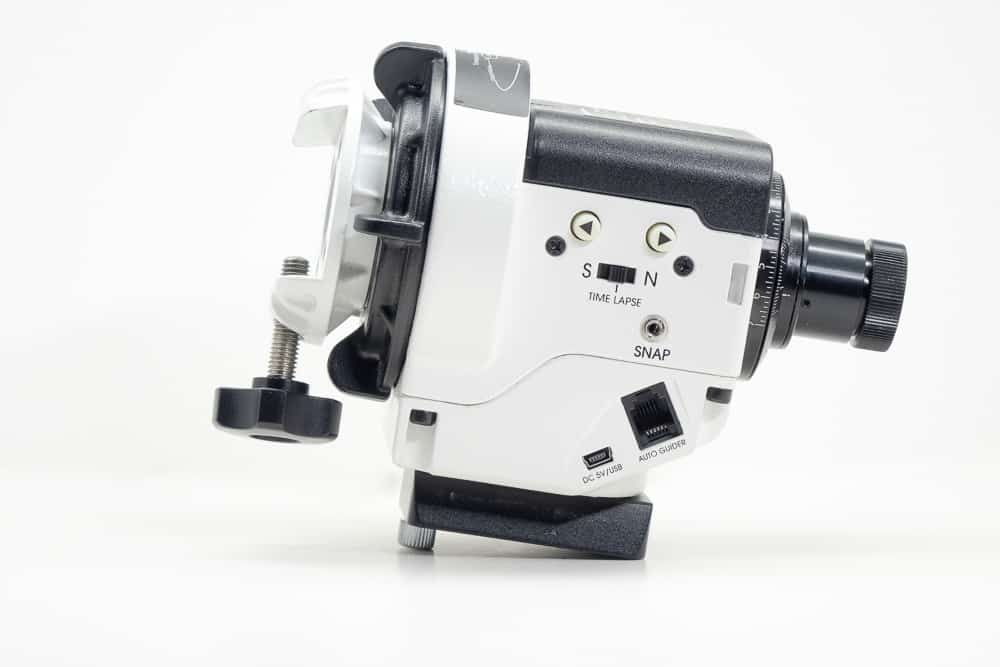

left side of sw star adventurer
The left side of the mount is quite packed with ports and controls.

There we find:

  1. Two buttons, marked with arrows, to rotate the payload clockwise or counterclockwise at 12X the sidereal speed. This is useful to adjust the composition without manipulating the clutch.
  2. An S-time lapse-N selector for tracking in the Southern (S) or Northern (N) Hemisphere. For a timelapse move the selector to its middle position.
  3. The Snap port is where you plug-in the cable to control your camera.
  4. The DC 5V/USB port is to power up the star adventurer using a power bank
  5. The Auto Guider port is where you plug the ST-4 cable to guide the Star Adventurer (only in right ascension).

At the top, there is the battery compartment for the 4 AA batteries. The battery cover has a table to remind you of the different operating modes.

Travel With Your Star Adventurer: Weight  And Portability

The Star Adventurer fits in almost any photography backpack or bag, making it very easy to travel with. Boarding a flight with the Star Adventurer will cause no headaches.

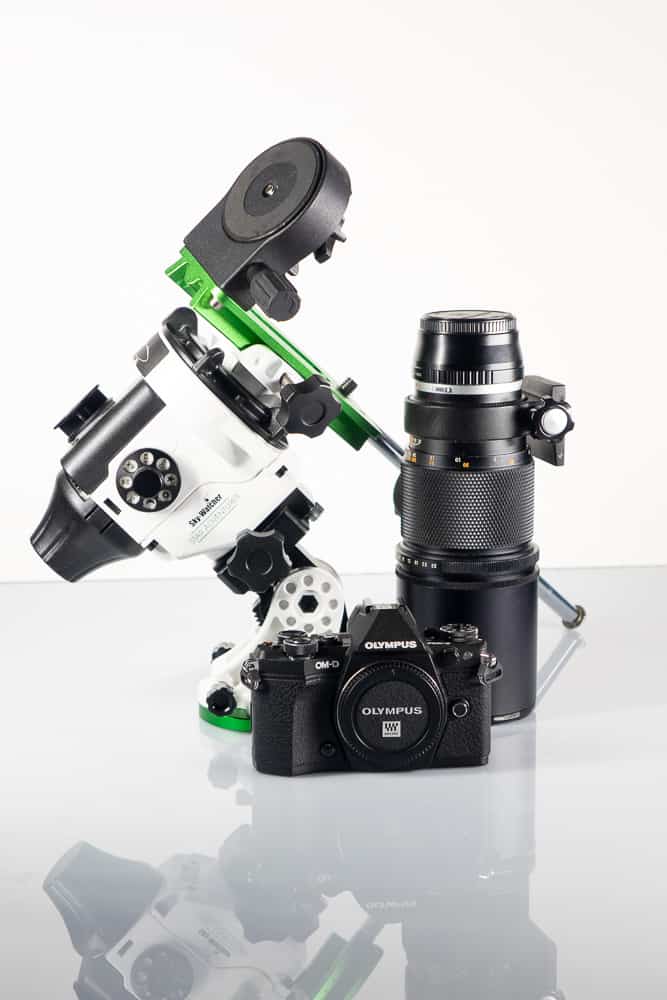

size difference between olympus camera and star adventurer
The Star Adventurer compared to a large 300 f/4.5 telephoto and my MFT Olympus camera.

The full mount, with the wedge, declination plate, and counterweight weighs just under 3 kg.

Payload Capacity And Typical Photographic Gear

The Star Adventurer has a maximum payload of 5kg: this is quite high for the size of the mount. Note that the counterweight is not considered to be part of the payload.

As a rule of thumb, though, in astrophotography, it is considered a good practice to charge the mount to about 60-70% of its maximum payload capacity.

This ensures a reliable tracking, easier balance of the payload, and a longer operational life for the mount.

By working with micro four-thirds cameras, it is rather easy for me to charge the Star Adventurer by less than 50% of its maximum capacity.

My heaviest configuration, though, is about 3.5kg, and that includes my heavy Olympus Zuiko 300 f/4.5, my Olympus OM-D EM-5 Mk II, the guiding system, and accessories.

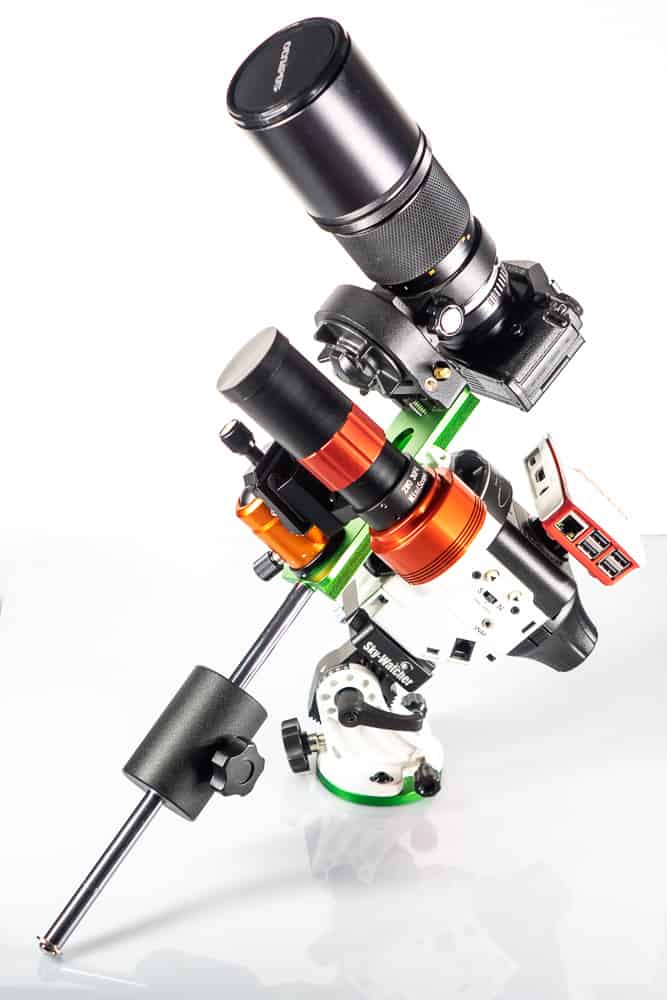

full setup ready for night photography
My heaviest configuration includes a 300mm lens, the camera, and a guiding system built around the ZWO Asiair.

The Star Adventurer can take more than just photographic lenses. Many people use refractors such as the William Optics Zenithstar Z61, the William Optics RedCat Z51, or even the larger SkyWatcher ED 72.

For lunar and planetary work, I mount a SkyWatcher Skymax 90/1250 maksutov telescope, and I think this is the heavier and “longer” instrument this tracker can deal with.

Battery Type And Battery Life

The Star Adventurer can be powered up by using 4 AA batteries or by a power pack outputting 5V DC.

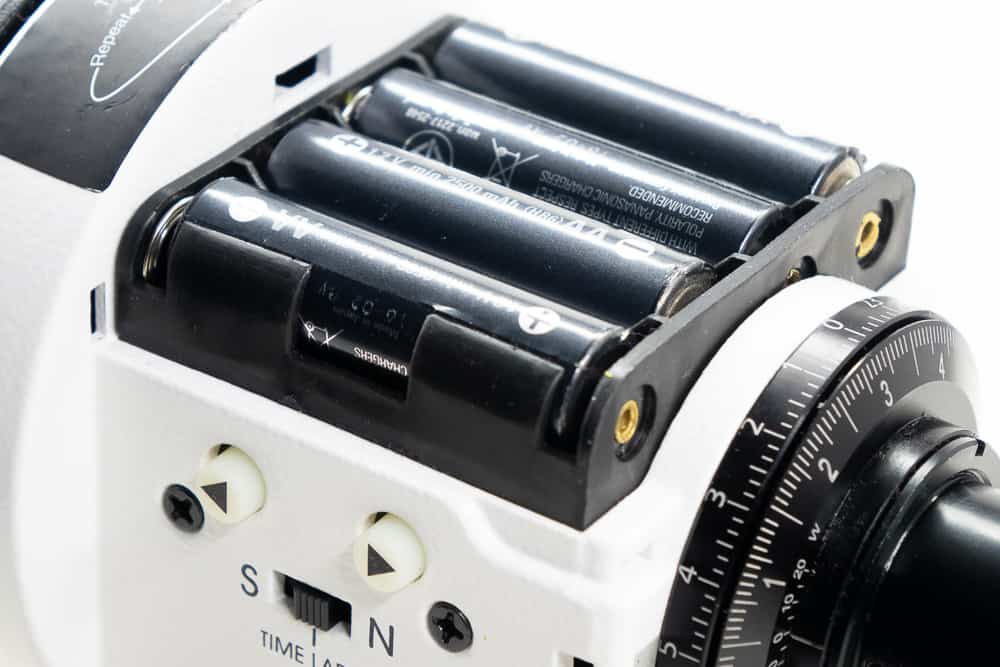

battery compartment of the skywatcher
4 AA batteries can be used to power up the Star Adventurer.

The power consumption is fairly low, and a set of batteries will last for multiple nights, and with low battery power, the LEDs on the star adventurer will start to blink.

I use rechargeable Panasonic ENELOOP PRO batteries: even when tracking for 7+ hours, I didn’t see the low battery warning going off.

A common complaint is that removing the batteries proves to be challenging. Instead of breaking your nails, get a plastic knife like those used by toddlers, and you will have no problems.

Tracking Performances

The tracking capabilities of a mount depend on the precision of the gears and the precision of the polar alignment.The Star Adventurer has a periodic error that is fairly low for the kind of mount, meaning you can get a good accuracy even with longer exposures and relatively long focal length.

The image below is a stack of images each 180″ long, using a 200mm lens on my micro four-thirds camera: this combination gives the equivalent field of view of a 400mm lens on a full-frame camera.

good payload balance to capture NGC6871
With proper polar alignment and payload balance, you can get reasonable round stars even with 180″ exposures using a 400mm lens.

As for any mount, the longer the focal length, the more visible the tracking errors become, and you will reject a larger number of frames than when working at short focal lengths.

Overall, the Star Adventurer delivers good performances, providing you do not push it to its limits.

What’s Included In The PRO Pack?

The Star Adventurer can be purchased alone or in what is now called the PRO version. This is what you should consider, without a doubt.

The Star Adventurer’s PRO Pack includes the following accessories:

  • The Ball Head Adaptor
  • The Equatorial Wedge with Mounting Plate
  • The Declination Bracket
  • A 1kg counterweight with bar
  • The Polar Scope Illuminator

The Equatorial Wedge

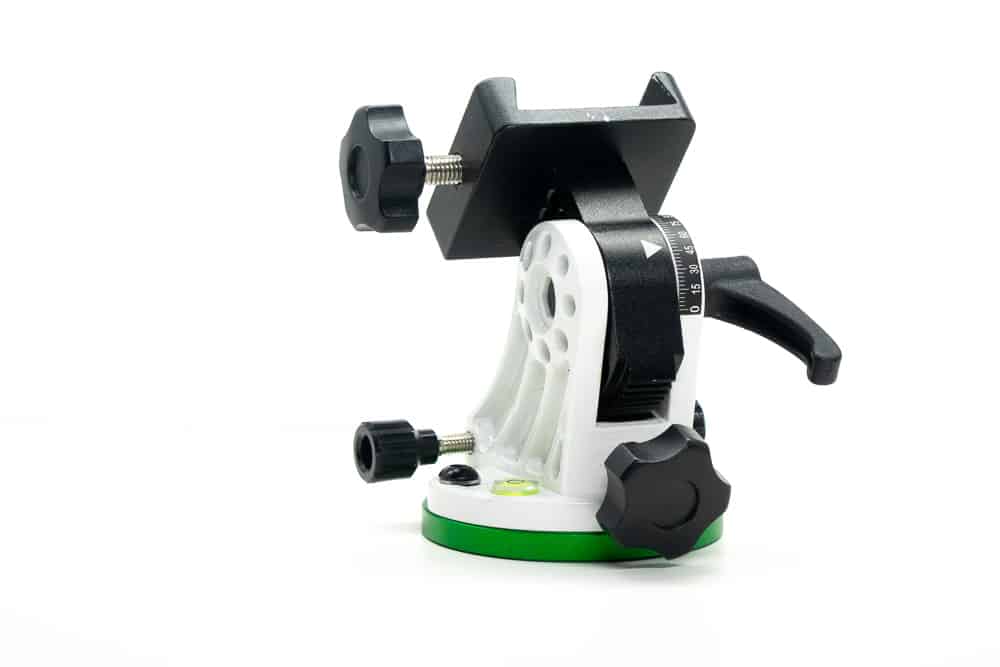

equatorial wedge
The equatorial wedge.

The Equatorial Wedge is used to mount the Star Adventurer on a photographic tripod, and it allows us to precisely align the tracker to the celestial pole (see polar alignment).

To mount the Star Adventurer on the wedge, you have to use the included base plate.

The Ball Head Adaptor

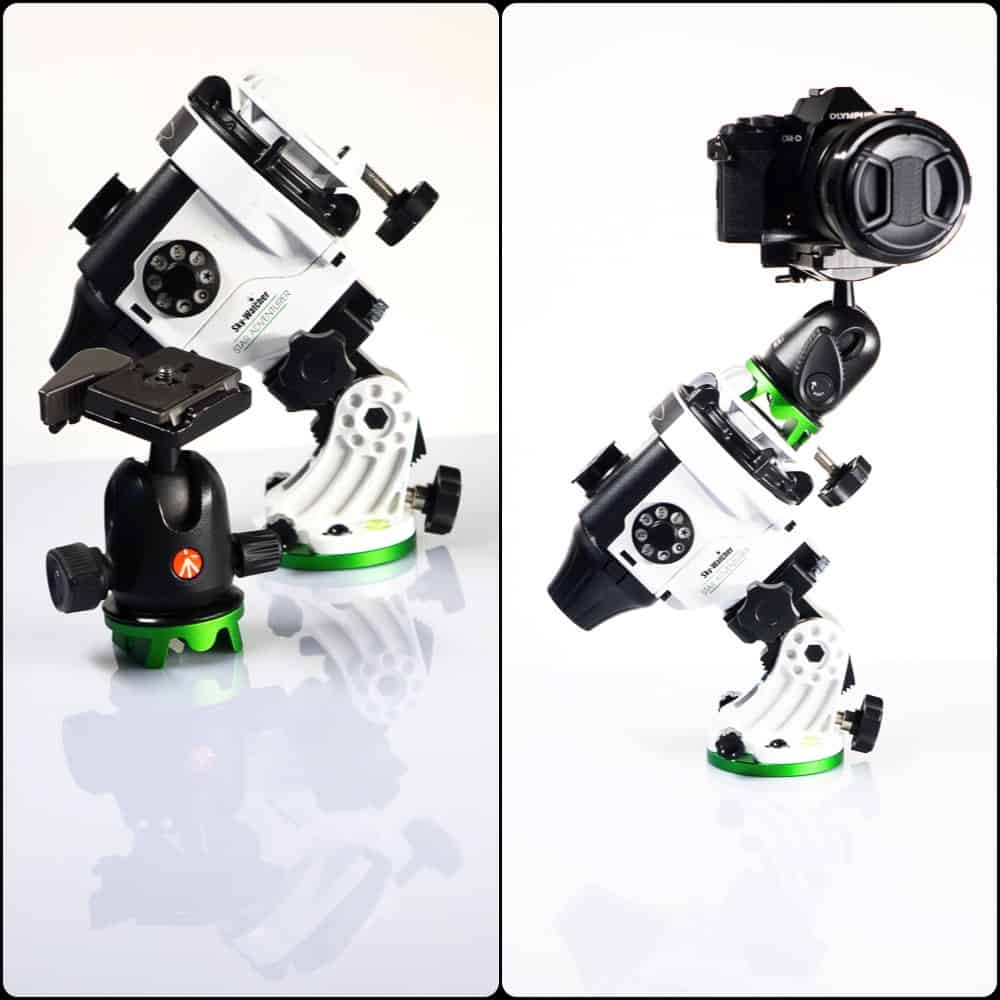

ball head adaptor setup
Setting up the Star Adventurer for starry landscape photography, using the ball head adaptor.

This adapter allows you to mount a ball head on the Star Adventurer. This configuration is particularly interesting for starry landscapes, as you retain full control on how to frame the scene.

The Declination Plate And Counterweight

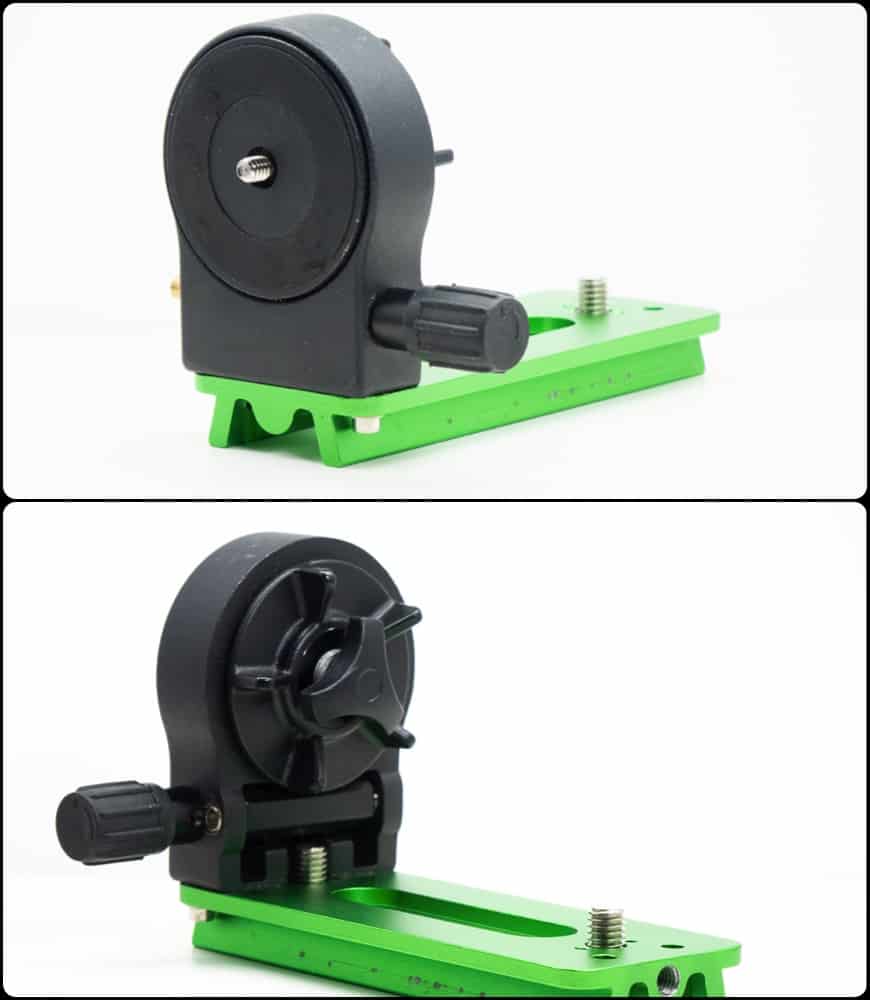

declination plate needed for heavy gear
The declination plate, for astrophotography using heavy gear and the counterweight.

For deep sky astrophotography and anything beyond ultra-wide star fields, you should mount your gear using the Declination plate.

This will be your go-to setup for astrophotography, and you will probably use the Star Adventurer in this configuration most of the time.

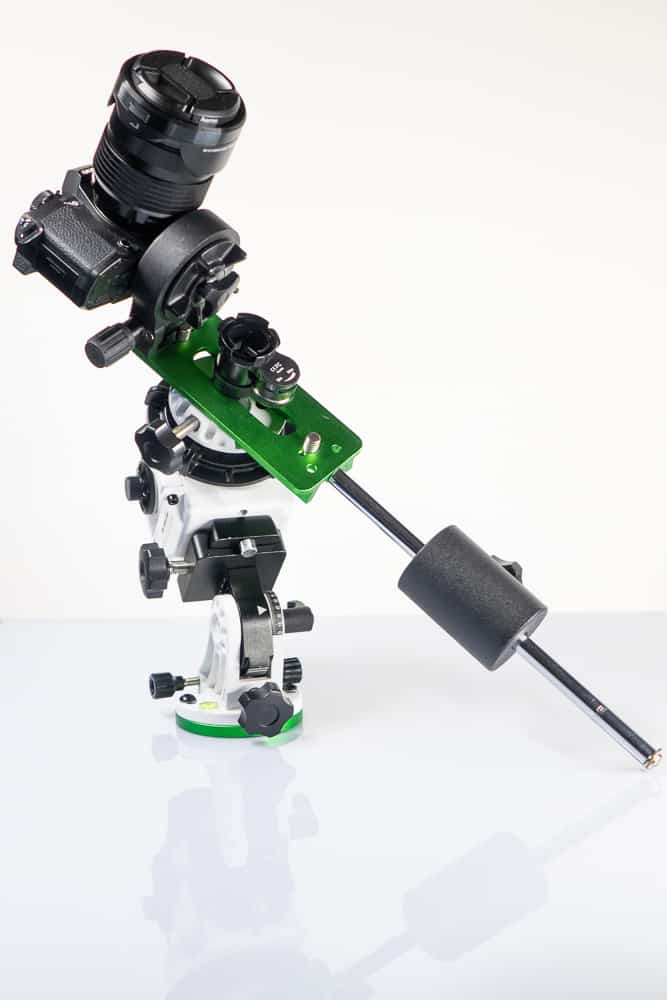

recommended setup of the skywatcher
The typical astrophotography configuration.

There are several advantages in using this plate:

  1. You can use the fine adjustment knob to precisely frame the target
  2. you can use the counterweight to achieve a better balance
  3. you can mount a guiding system or second camera
  4. you can verify your polar alignment in during the session

With no ball head, the rigidity and usability of the system is improved, and you can better balance your gear on the Star Adventurer, thus improving tracking performances.

Polar Illuminator

The Polar Illuminator allows you to easily see the reticle in the polar scope for the polar alignment.

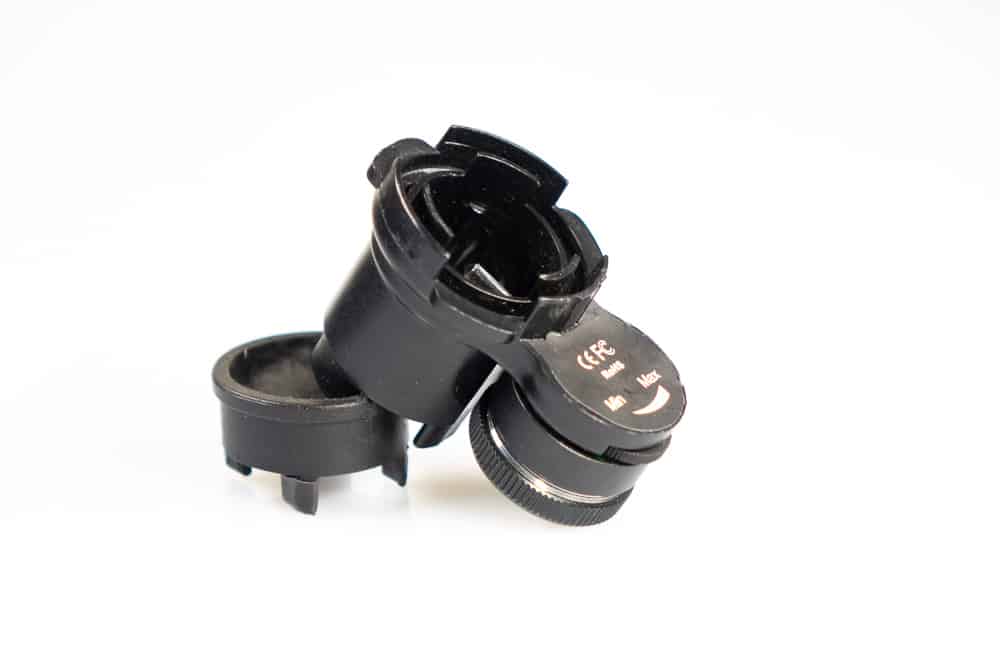

polar illuminator with the adaptor
The polar illuminator with the adaptor for the declination plate.

It comes in two pieces: the illuminator itself and an adaptor base. While the illuminator fits in the Star Adventurer body, you need the adaptor to mount it on the declination plate.

The red light is dimmable, but there is no on/off switch. To turn the illuminator off, you have to unscrew almost completely the battery cover. Not the greatest solution, if you ask me.

What’s Not Included (But Would Be Useful)

Some extra accessories can make your life easier and improve the tracker usability.

Hot Shoe Red Dot Star Finder

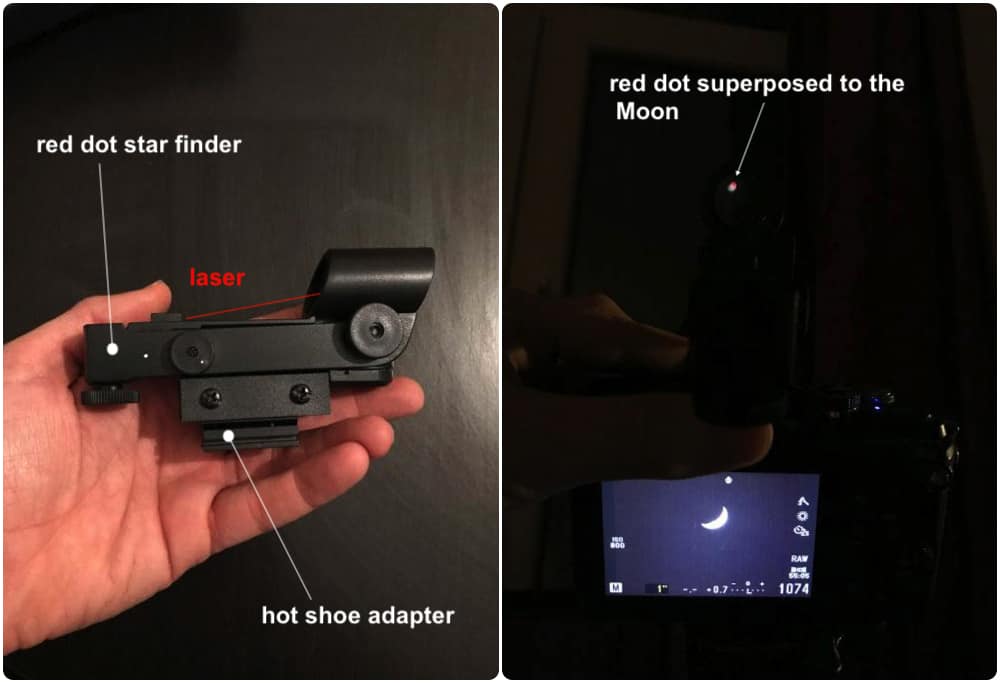

red dot star finder
Left: a red dot star finder. Right: by superposing the red dot to the Moon, I can quickly center the Moon in the frame, even when working at 800mm and more.

Are you wondering how to frame a target without a computerized GOTO system?

The simplest and fastest solution is to get a cheap red dot star finder you can mount on your camera hot shoe.

After you have calibrated the star finder to be sure is aligned with your lens, to frame a target look through the star finder and move the payload to superpose the red dot to your target (or the region where it is).

Right Angle Viewfinder

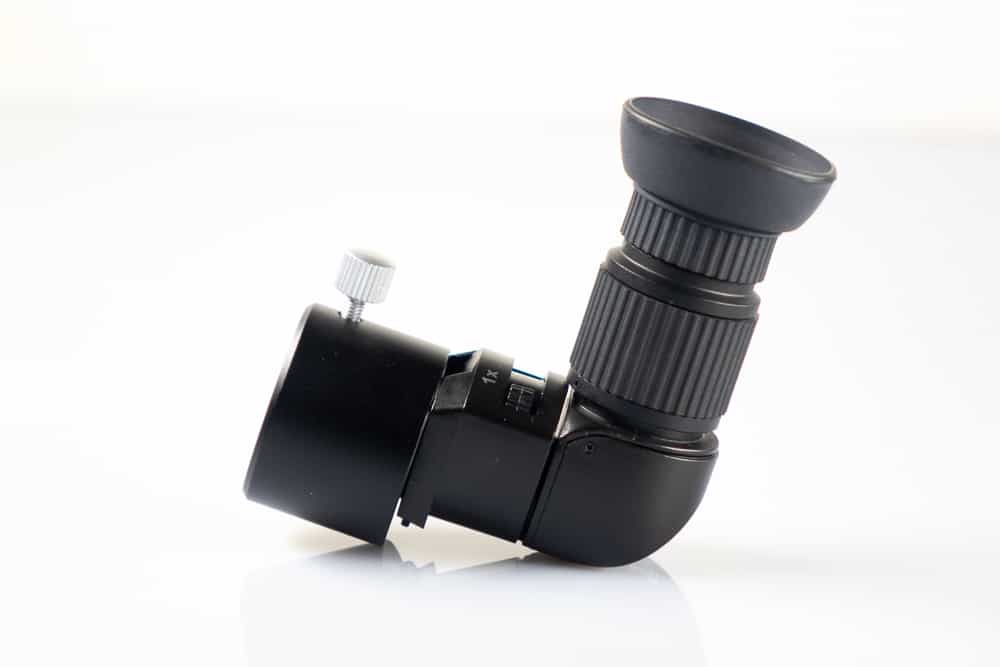

right angle viewfinder
The right-angle viewfinder allows for a more comfortable polar alignment.

To make polar alignment more comfortable and to avoid kneeling on the ground, you can get a right-angle viewfinder for the polar scope.

Shutter Release Cable For Your Camera

The Star Adventurer can control your camera, and the cable you need is available from SkyWatcher for all the major camera brands, but it is optional.

I still prefer an external intervalometer for astrophotography, but if you want to create a time-lapse, this can be a good option.

Ease Of Use

One of the strengths of the StarAdventurer is its ease of use:

Setup

Setting up the Star Adventurer is reasonably quick, once you get used to the process.

  1. Take your sturdy tripod, level it and pop the wedge on it
  2. Point the front knob of the wedge towards North and set the wedge to your latitude
  3. Mount the star adventurer with the payload (if you use the declination plate)
  4. Polar align the mount
  5. Frame the target
  6. Begin Shooting

Polar Alignment

A good polar alignment is crucial in astrophotography, as it allows you to expose longer while keeping the stars round.

Polar align means that the mount has to be aligned to the celestial pole.

For us in the Northern Hemisphere, to polar align the Star Adventurer, we have to put Polaris, the North Star, in the proper position on the clock we see inside the polar scope.

The simplest polar alignment procedure can be summarized as:

  1. Set the time zone
  2. Release the clutch and set the date & time (don’t use daylight saving time)
  3. Lock the clutch
  4. While looking through the polar scope, manipulate the wedge to bring Polaris on the clock in correspondence to the number 6, wherever this is

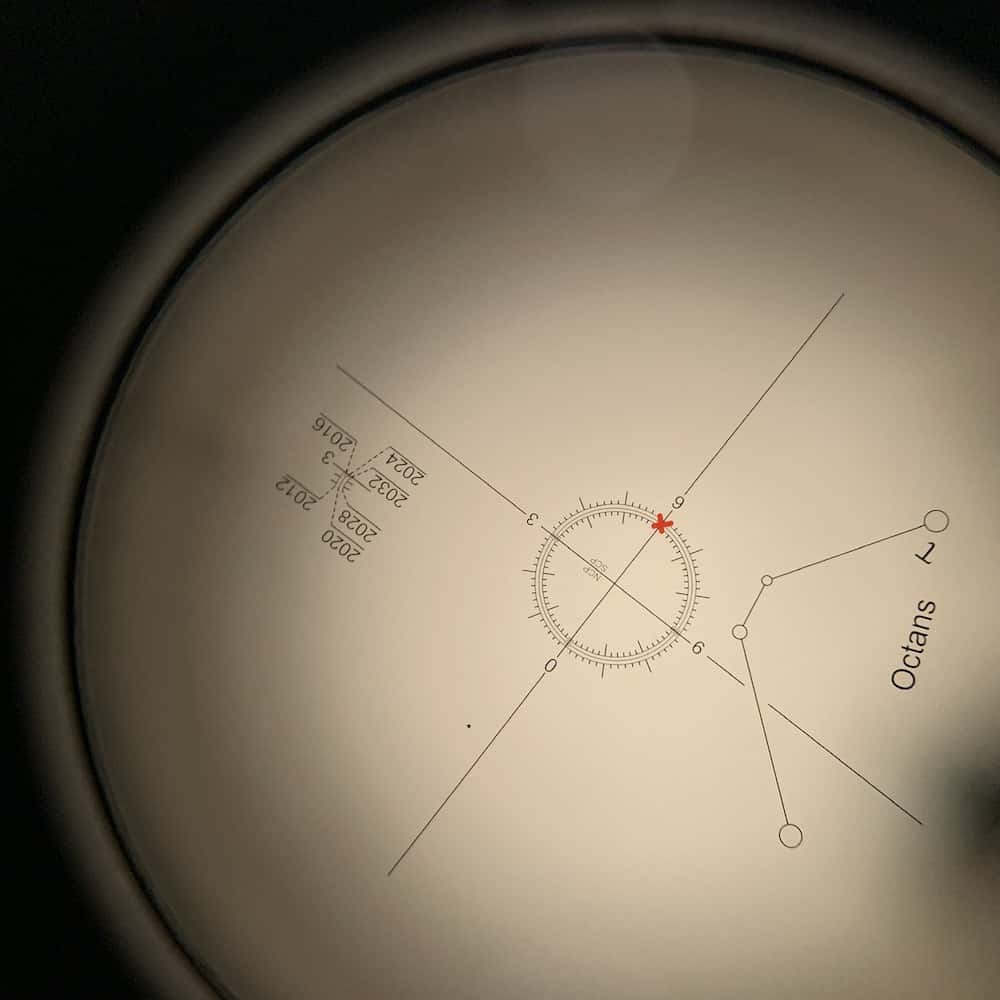

polar align the mount
To polar align the mount at 3 a.m. of January 31st, in time zone zero, you have to put Polaris on the red cross in the image.

If you are in the Southern hemisphere, you have to use Octans, a relatively faint constellation.

The video below clarifies how to work with the graduated circles.

http://www.youtube.com/watch?v=jBYvUiG9RPs

Alternatives

A good alternative to the Star Adventurer is the iOptron SkyGuider PRO. While it has similar specs and performances, it also has a slighter higher price tag, and its wedge seems to be worse than that of the Star Adventurer. See our review here.

iOptron SkyGuider PRO vs star adventurer

The iOptron SkyGuider PRO set

If you are constantly on the move and mostly interested in starry landscapes and star fields, the compact and fully mechanical Omegon Minitrack LX3 tracker is worth considering.

Omegon Mount Mini Track LX3 vs star adventurer

The Omegon Minitrack LX3

Conclusions

Star Adventurer allows to photograph the deep sky
The Star Adventurer allows photographing the deep sky as well as the Moon and the planets with a small telescope and astro camera.

A star tracker is the key to unlocking the beauty of the night sky. This is the first piece of astrophotography equipment you should consider, and the SkyWatcher Star Adventurer is one of the most highly regarded trackers among amateur astrophotographers.

img-29
About Andrea Minoia

Andrea Minoia works as a researcher in a Belgian university by day and is a keen amateur astrophotographer by night.

He is most interested in deep sky photography with low budget equipment and in helping beginners along their journey under the stars.
